Product Information
HOME > Product Information > HONDAFLOH®BELT・MAX LINER BELT®・HONDAFLOH SEAMLESS BELT®
- Product Applications
- Food（drying ・ defreezing ・ baking ・ steaming ・ frying・ non-adhesiveness ・ draining）, Packaging（heat sealing ・ shrink）, Printing（drying）, Fiber（heat ・ drying ・ heat press ・ steaming）, Electric device（crimping ・ drying ・ washing）.
- Features

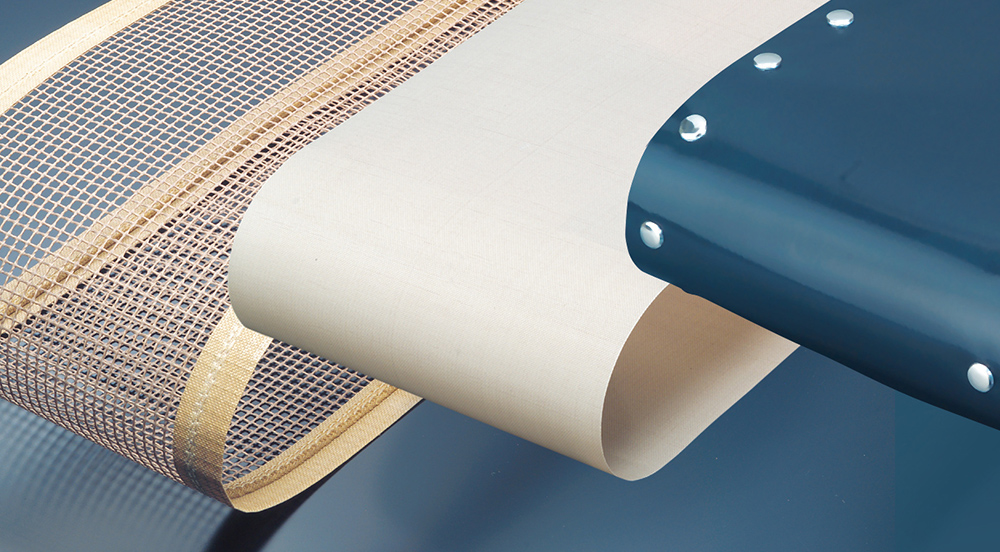

- They are a high performance conveyor belt made of HONDAFLOH® FABRIC.
HONDAFLOH® BELT is a high performance conveyor belt made of HONDAFLH® FABRIC.It is preferable to application fields which require heat resistance , non-adhesiveness and chemical resistance.We suggest optimum conveyor belt to meet the customer's working condition or the machine condition.
- Features

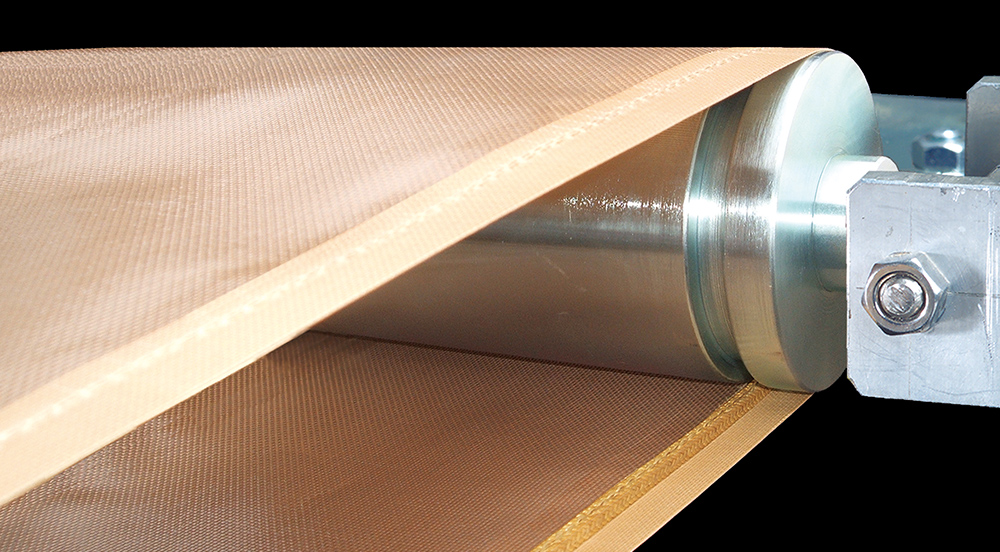

- MAX LINER BELT® equipped a special guide on the back side of belt , which is driving along the groove of rolls of conveyor system , is able to smooth running. It solve the "belt meandering" that is a serious defect in PTFE coated belts.
- Feature
- HONDAFLOH SEAMLESS BELT® is an endless belt that is made of tubular - weaved glass cloth coated with PTFE.
- Product List
-
Type Thickness (mm) Weight (g/m2) Peripheral Length (mm) Maximum Width (mm) Tensile Strength(N/cm) Food Hygiene Act※1 Minimum pulley diameter Warp Wet HSS-P506 0.13 250 294~750 20 225 150 ◯ Φ40 HSS-P508 0.175 380 294 ~ 800 100 285 177 ◯ Φ50 801 ~ 1500 300 HSS-P511 0.26 480 294~800 100 370 390 ◯ Φ50 801 ~ 3250 300 HSS-P514 0.29 550 1360 ~ 2200 450 395 390 ◯ Φ60 2201 ~ 3199 1000 3200 ~ 3545 1200 Please contact us regarding the C (Anti-electrostatic) and CW (Resistance to UV radiation) types.
※This table can be scrolled horizontally.
HUS belt
- Product Applications

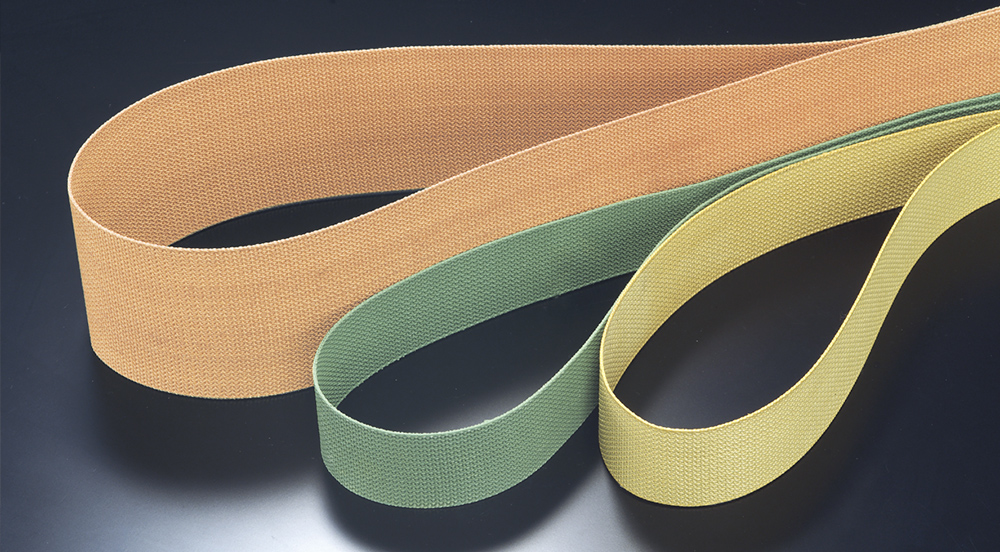

- HUS belt is applicable to conveying system required for remarkable high tension.
- Features
- HUS belt is specially weaved aramid fabric cloth coated with PTFE.
- Product List
-
Type Thickness
(mm)Width
(mm)Maximum Length
(m)Tensile Strength
(N/cm)Recipe HUS-W560 1.5 25
30
50
75
100
150
200
250
280
30050 3000 Standard HUS-W560CW Resistance to UV radiation HUS-W560A 3920 Special rubber treatment HUS-W560FG 2940 Special rubber treatment ※This table can be scrolled horizontally.
